Cutelo de fibra óptica de grande diâmetro SH-D105

O emendador de fusão especializado S400 LDF é um novo modelo com tecnologias inovadoras para atender às necessidades especiais de emenda de aplicações de fábrica, fabricação, laboratório e P&D. Os usuários podem emendar fibras de grande diâmetro (125 ~ 500um) com o S400 LDF Specialty Fiber Fusion Splicer.

T0X series optical fiber recoater is the latest high-precision optical fiber recoater, including four types (HXGK-T01---HXGK-T04), suitable for various types of ordinary fiber, ribbon fiber and polarization maintaining fiber. Products are well-crafted with stable quality and easy to operate. They have a wide range of applications in scientific research, fiber optic sensing, fiber optic gyroscopes, optical switches, fiber optic lasers, fiber optic communications, etc. They are designed as multi-functional coating machines for fiber optic recoating repair. The coating length of this optical fiber recoater is 50 mm or 100 mm (customizable type), used to repair the outer coating layer of fusion-spliced optical fibers, to restore the physical and optical characteristics of the fibers, and to enhance the flexibility of the fibers to protect the bare fiber and fusion point.

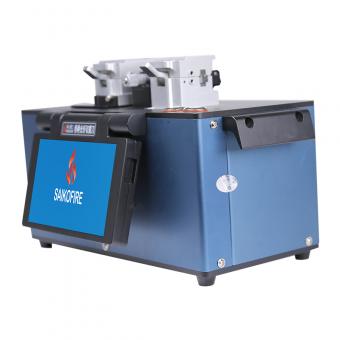

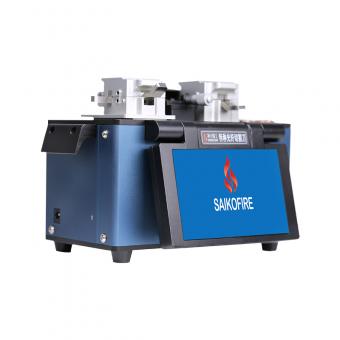

SH-D105 large diameter optical fiber cleaver can be mainly used for cutting large diameter fibers and optical fiber combiner. Users can easily cut different types of optical fibersand combiners by setting the pulling force of the optical fiber and propelling the blade in advance. The machine not only has the cutting stability needed for production, but also has the characteristics of flexible debugging needed for research and development. Features: Applicable to cladding diameter 60μm~400μm fibers Support parameter defining and software upgrading Vacuum pump V-groove convenient to put fiber Durable blade, life time more than 15000 times Supply 2 different fiber holders( apply to 60μm~400μm)Suitable for variety fibers cutting, such as photonic crystal fiber, doped fiber, glass tube, capillary tube.

1. Six motor core to core, core adjustment, center alignment 2. Artificial calibration and Real-time ARC automatic calibration are optional. 3. The same optical fiber and different opticalfibers are connected in the center. 4.Electrical discharge ARC makes realtime compensationaccording to the pressure, environment and temperature parameter. 5.Two cameras can observe X axes and Y axes at the same time. 6. High resolution 5 inch color LED touch screen, multi languages are customizable. 7.2 USB ports: one for data transmission,one for power supply of LED light

Special wavelength OTDRs are reliable instruments used to measure the characteristics of optical fibers with large core diameters.This series of products are compact, light transmission quality and achieves the measurement results after the results processing,archiving, printing. The person who installs and maintains the fiber optic cable by looking at the "incident point"of fiber optic test graph to point out these irregularities in the fiber, locate the positions, measure the attenuation and the uniformity of damage and attenuation.

1.Easy to use,automatically longitudinal strip,high quality striping,stable and efficient 2.The blade is durable and easy to replace 3.Adopt high-precision linear guide and motor directly drive striping way to ensureno damage to the fiber

SH-D105 large diameter optical fiber cleaver can be mainly used for cutting large diameter fibers and optical fiber combiner. Users can easily cut different types of optical fibersand combiners by setting the pulling force of the optical fiber and propelling the blade in advance. The machine not only has the cutting stability needed for production, but also has the characteristics of flexible debugging needed for research and development. Features: Applicable to cladding diameter 60μm~400μm fibers Support parameter defining and software upgrading Vacuum pump V-groove convenient to put fiber Durable blade, life time more than 15000 times Supply 2 different fiber holders( apply to 60μm~400μm)Suitable for variety fibers cutting, such as photonic crystal fiber, doped fiber, glass tube, capillary tube.

Tamanho pequeno, teste fácil de campo Locador de falha visual tipo caneta de alta qualidadeIdentificação fácil de pausa de fibra, curva, você pode proteger a fibra camada.
